D-Line Maxi & Maxi+ Cable Trunking

50x25mm (Maxi) & 60x30mm (Maxi+)

Maxi & Maxi+ Trunking profiles are versatile solutions, providing capacity to contain several cables.

Features

  1. One-piece design & patented click-lock lid gives easy access to cables… providing flexibility to add or remove cables.
  2. Capacity to cover multiple AV cables.
  3. Strong self-adhesive backing enables easy peel & stick installation - all D-Line trunking lengths can be drilled & screw fixed for added stability.
  4. Hides unsightly cables in decorative trunking… the stylish half round profiles blend with décor.
  5. Quick & easy install, saves hassle of channelling walls.
  6. To cover cables around corner bends, and between D-Line lengths, Trunking Accessories are also available.

Residential Applications

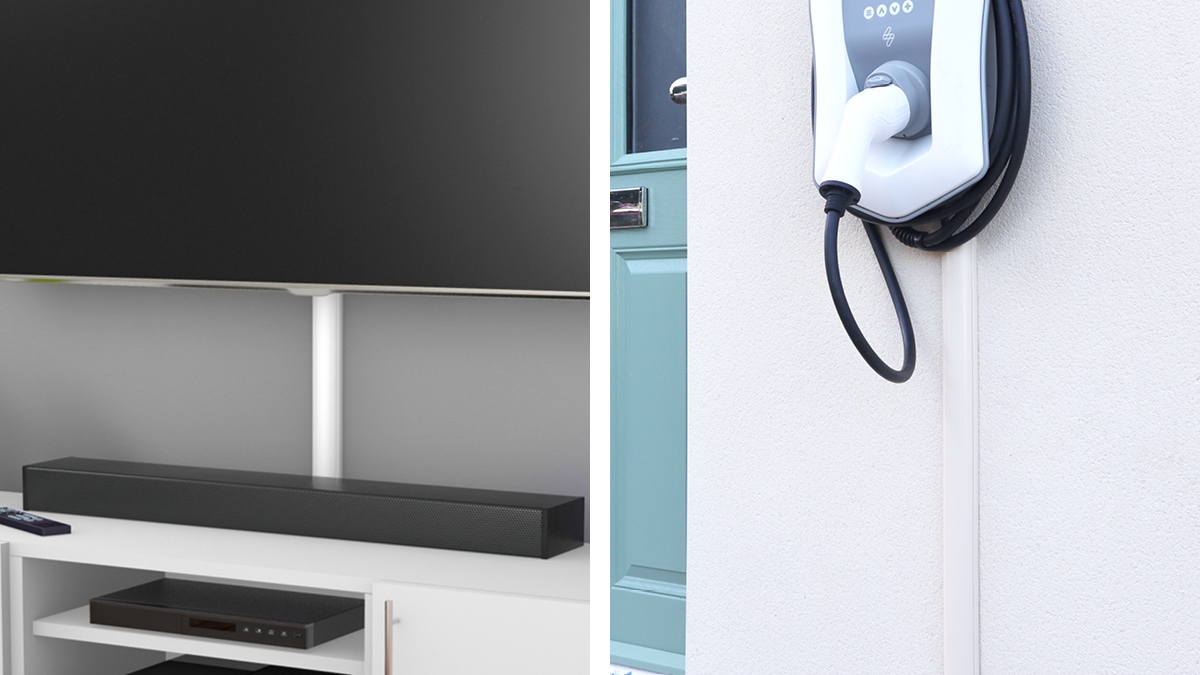

TV cable hider

600 x 500px_1

EV cable hider

600 x 500px EV Charger

How to install

Trunking

Step 1

400px_measure
Measure length to required size, pencil mark where cut will be made.

Step 2

400px_cut
Use a junior hacksaw (minimum of 32 tpi) to cut length, at the outer edge of the pencil mark.

Step 3

400px_film
Remove the protective film cover.

Step 4

400px_peel
Peel & stick self-adhesive backing to a clean dry surface. Alternatively, lengths can be drilled and screw fixed. Take care when positioning lengths as adhesive backing does create a strong bond .

Step 5

400px_lock
Open hinged lid to add cables, then snap lid shut, utilising the effective ‘click lock’ lid.

Step 6

400px_accessory
The tabs of D-Line 50x25mm bends and tees simply clip-over the lengths (forgiving any imprecise cuts).

Accessories for D-Line trunkings are designed for ‘easy installation, look great!’

Check out videos to see how our accessories make it easy to navigate 90 degree corners and connect additional lengths.

Dimensions

Maxi Trunking

Maxi_dims_uk
Width = 50mm Height = 25mm

Length options = 1, 2 & 3 metre lengths

Maxi+ Trunking

Maxi+_dims_uk
Width = 60mm Height = 30mm

Length options = 1, 2 & 3 metre lengths

Colour options

White

400px_w_length

Black

400px_b_length

Magnolia

400px_m_length

Aluminium-effect

400px_a_length

Oak-effect*

400px_o_length

Paintable**

400px_paint
* Not available in Maxi+ size

** All lengths can be painted for the perfect finish. Painting... sandpaper, then paint can be applied for best results.

Alternative D-Line Trunking profiles

Micro Trunking

micro_uk
16x8mm

Micro+ Trunking

micro+_uk
20x10mm

Mini Trunking

mini_uk
30x15mm

TV Trunking

Tv_trunking_uk
60x15mm

¼ Round Trunking

qtr_round_uk
22x22mm
