Safe-D® U-Clips

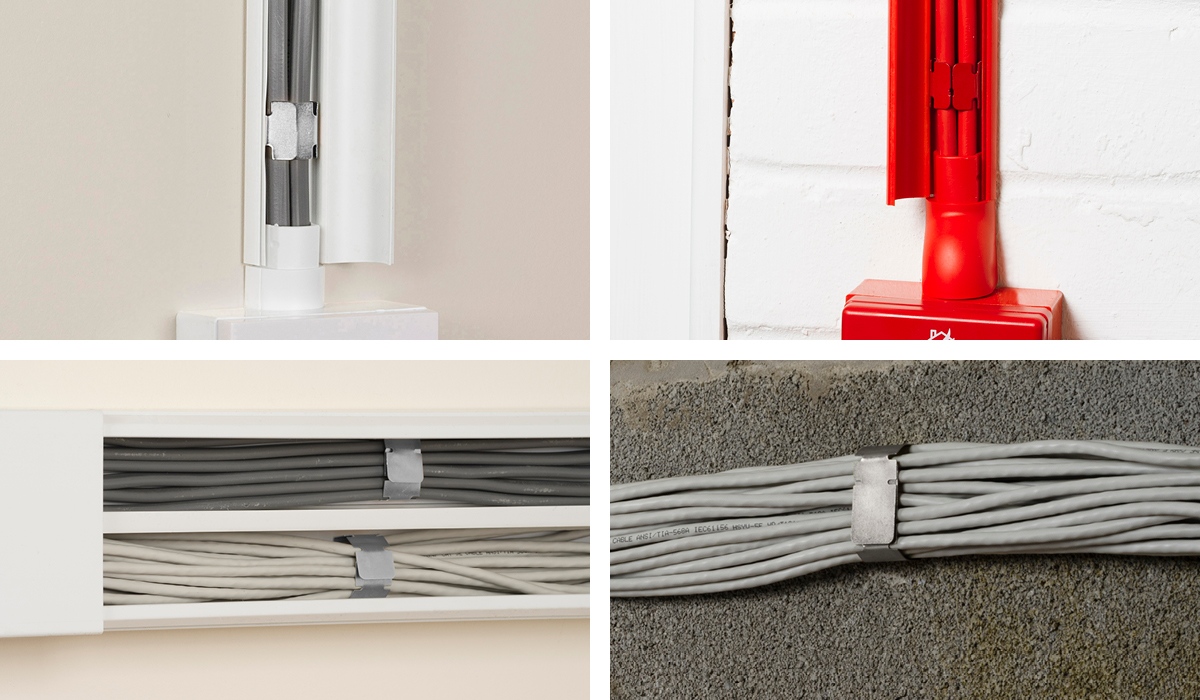

Safe-D U-clips can be fitted direct-to-surface, or in non-metallic trunking systems.
All can be secured to substrates by shot-fired nails or screw-fixings.
After cables are inserted, tabs can be folded inwardly to safely secure the cables. They are produced from a specified steel with >1200ºC melting point.
The combination of the pliable gauge steel & rounded corner features makesSafe-D U-Clips quick & easy to install. Three sizes are available to fit trunkings
from 25mm width up to 50mm wide bases, or direct-to-surface.
- Thumb friendly, easy fold side-tabs
- Ideal for ceiling voids, or popular PVC trunkings
- Supplied as U-shape
- >1200°C melting point
- Fully safety tested to satisfy requirements of BS5839 pt 1 & BS7671
Dimensions
U-Clip 30 - 20mm (L) x 23mm (W) x 8mm (H)U-Clip 30 Red - 20mm (L) x 23mm (W) x 8mm (H)
U-Clip 40 - 20mm (L) x 32mm (W) x 20mm (H)
U-Clip 50 - 20mm (L) x 47mm (W) x 30mm (H)
Safe-D U-Clip 30 & 30 Red
1st fix clips, then 2nd fix cables: Safe-D U-Clip 30 fits perfectly in 30 x 15mm Mini Trunking, while the 23mm base can fit 25 x 16mm traditional trunking also. Alternatively Safe-D U-Clip 30 fire clips can be fixed directly to surfaces, with user-friendly and pliable tabs that simply fold- over to secure cables. Safe-D Red U-Clip 30 can be fitted directly to surfaces, with tabs that simply fold-over to secure cables. The red finish makes a popular solution for containing red-sheathed fire performance cables direct to surface.The 23mm width is ideal for popular 2x MICC or FP-cable combinations.
Safe-D U-Clip 40
1st fix clips, then 2nd fix cables: Safe-D U-Clip 40 is ideal for fitment in 38mm or 40mm non-metallic trunking bases, or to provide a first-fix solution for securing cables direct to surfaces. Installers should use a fire-rated fixing, such as D-Line D-Fixings, and then simply fold-over tabs to secure cables.
Safe-D U-Clip 50
1st fix clips, then 2nd fix cables: Safe-D U-Clip 50 fire clips are popular for fitment in 50mm non-metallic trunking bases, or to provide a first-fix solution for securing cables direct to surfaces. Installers should use a fire-rated fixing, such as D-Line D-Fixings, and then simply fold-over tabs to secure cables.
Alternative Products
F-Clips
Conduit Saddles
Adjustable Clips
EV Cable Fixing Packs
Stag Clips
T&E Grip Clips
Spring Clip
Retro Clips
Steel Cable Ties
D-Fixings
Drill Bits
To provide assurance and peace of mind, all D-Line Safe-D® products have been certified by Exova Warringtonfire.
Tests confirmed that all products can hold cables secure in temperatures of 930ºC (+40 -0ºC) for 2 hours. Safe-D®
products also withstand required levels of shock, vibration and water spray. Copies of reports are available on request.
Tests confirmed that all products can hold cables secure in temperatures of 930ºC (+40 -0ºC) for 2 hours. Safe-D®
products also withstand required levels of shock, vibration and water spray. Copies of reports are available on request.
