Safe-D® Conduit Saddles

D-Line Conduit Saddles combine fire performance, quickest fix, and a modern look,
to secure cables in 20mm or 25mm o/d PVC and galvanised conduit installations.

These innovative one-piece saddles are fully tested and certified, satisfying the requirements of BS7671 & BS5839 pt1. They can be secured by only one fixing in base. Using the Conduit Saddle will prevent cables from dropping in fire conditions up to 970°C for 2 hours.

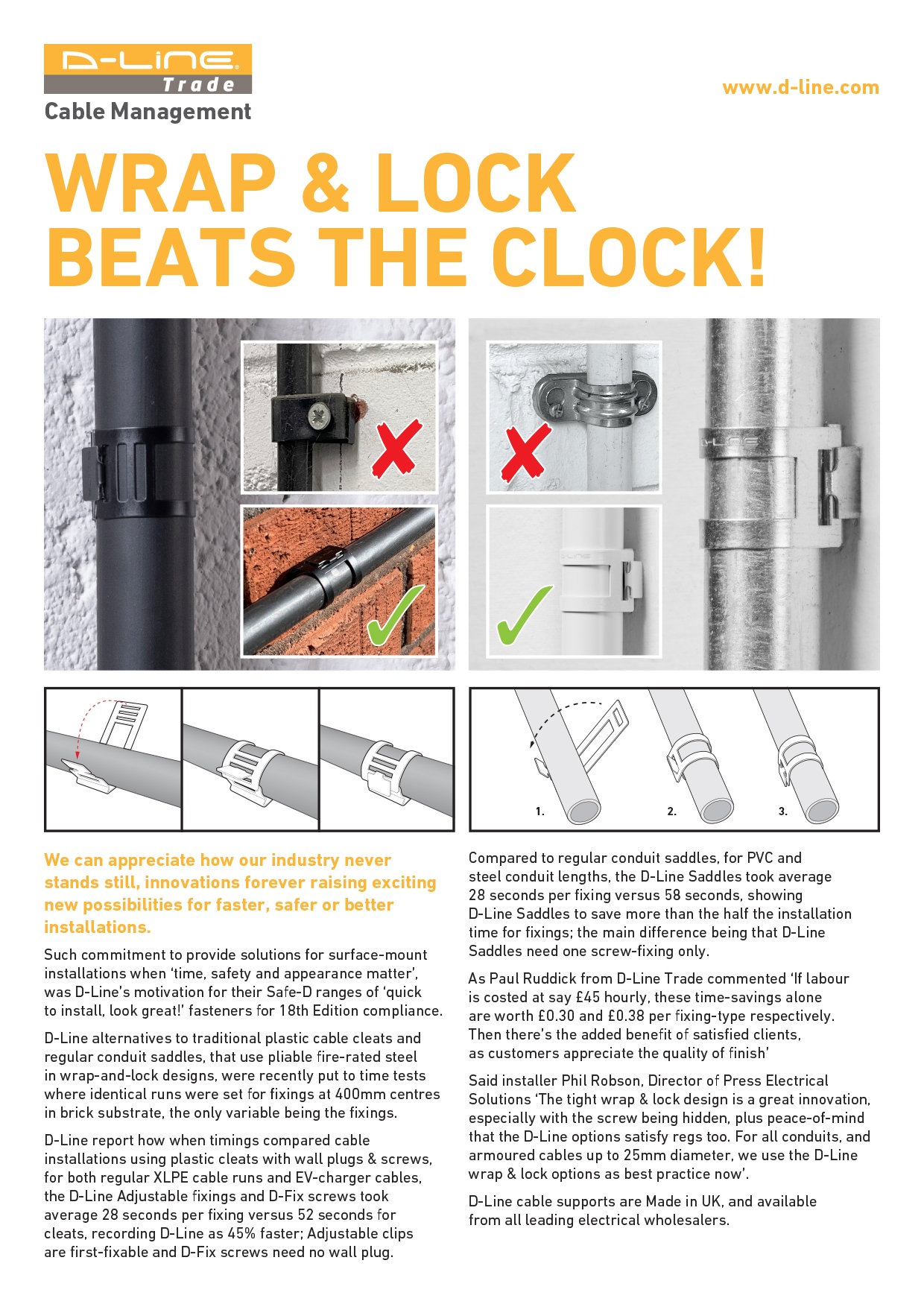

The high-performance steel is simple to wrap tightly around the conduit, perfectly forming the same shape. The tab is easy to thread through the slot, then fold to lock.

Installers should use a fire-rated fixing, such as D-Line D-Fixings, to secure D-Line Conduit Saddles.

• Unique single piece fixing, only 1 screw required
• Oval shape of base hole enables the Safe-D Conduit
• Saddle to be adjusted left or right-side
• Provides a 3mm stand off from surface
• >1200°C melting point
• Options for 20mm & 25mm conduits (& cables)… galv, white & black colours
• Compared to traditional saddles, installation time is approximately halved!

Dimensions

Conduit Saddle 20 Galv - 86.19mm (L) x 20mm (W) x 23mm (H)   (folded height)
Conduit Saddle 20 White - 86.19mm (L) x 20mm (W) x 23mm (H)   (folded height)
Conduit Saddle 20 Black - 86.19mm (L) x 20mm (W) x 23mm (H)   (folded height)

Conduit Saddle 25 Galv - 100mm (L) x 25mm (W) x 28mm (H)   (folded height)
Conduit Saddle 25 White - 100mm (L) x 25mm (W) x 28mm (H)   (folded height)
Conduit Saddle 25 Black - 100mm (L) x 25mm (W) x 28mm (H)   (folded height)
